[Community Version] UME is an in-app debug kits platform for Flutter apps.

Scan QR code or click link to download apk. Try it now! https://github.com/insightop/ume/releases

There are 13 plugin kits built in the latest open source version of UME. Developer could create custom plugin kits, and integrate them into UME. Visit Develop plugin kits for UME for more details.

Please see Plugins from community to make your ume stronger.

• ume
  • Quick Start
  • IMPORTANT
  • Features
  • Develop plugin kits for UME
    • Access the nested widget debug kits quickly
  • How to use UME in Release/Profile mode
  • About version
    • Compatibility
    • Coverage
    • Version upgrade rules
    • Null-safety
    • Change log
  • Contributing
    • Contributors
    • Plugins from community
    • About the third-party open-source project dependencies
  • LICENSE
  • Contact the author

Quick Start

All packages whose names are prefixed with ume_kit_ are function plug-ins of UME, and users can access them according to demand

1. Edit pubspec.yaml, and add dependencies.

   Compatible with Flutter 3 since version 1.0.0.

   dev_dependencies:
     ume: ^2.0.0


2. Run flutter pub get

3. Import packages

   import 'package:ume/ume.dart'; // UME framework


4. Edit main method of your app, register plugin kits and initial UME

   void main() {
     if (kDebugMode) {
       PluginManager.instance
        // Channel monitor
        ..register(ChannelMonitor())

        // Channel observer
        ..register(ChannelObserver())

        // Clean local data
        ..register(DataCleanPanel())

        // Console
        ..register(Console())

        // Database
        ..register(DatabasePanel(databases: []))

        // Designer check
        ..register(DesignerCheck())

        // Device
        ..register(CpuInfoPage())
        ..register(DeviceInfoPanel())

        // Dio
        ..register(DioInspector(dio: dio))

        // GetConnect
        ..register(GetConnectInspector(connect: get_connect))

        // Memory detector
        ..register(MemoryDetectorButton())

        // ..register(const DBViewer())

        // Monitor
        ..register(MonitorPlugin())
        ..register(const MonitorActionsPlugin())

        // Perf
        ..register(Performance())
        ..register(MemoryInfoPage())

        // SharedPreferences
        ..register(SharedPreferencesInspector())

        // Show code
        ..register(ShowCode())

        // Slow animation
        ..register(SlowAnimation())
        // UI inspector
        ..register(WidgetInfoInspector())
        ..register(WidgetDetailInspector())
        ..register(ColorSucker())
        ..register(AlignRuler())
        ..register(ColorPicker())
        ..register(TouchIndicator())

        // Custom router
        ..register(CustomRouterPluggable());

       runApp(UMEWidget(child: MyApp(), enable: true));
     } else {
       runApp(MyApp());
     }
   }


5. flutter run for running or flutter build apk --debug、flutter build ios --debug for building productions.

Some functions rely on VM Service, and additional parameters need to be added for local operation to ensure that it can connect to the VM Service.

Flutter 2.0.x, 2.2.x and other versions run on real devices, flutter run needs to add the --disable-dds parameter. After Pull Request #80900 merging, --disable-dds was renamed to --no-dds.

IMPORTANT

From 0.1.1/0.2.1 version，we don’t need set useRootNavigator: false. The following section only applies to versions before version 0.1.1/0.2.1 .

Since UME manages the routing stack at the top level, methods such as `showDialog` use `rootNavigator` to pop up by default, therefore **must** pass in the parameter `useRootNavigator: false` in `showDialog`, `showGeneralDialog` and other 'show dialog' methods to avoid navigator errors. ```dart showDialog( context: context, builder: (ctx) => AlertDialog( title: const Text('Dialog'), actions: [ TextButton( onPressed: () => Navigator.pop(context), child: const Text('OK')) ], ), useRootNavigator: false); // <===== It's very IMPORTANT! ``` </s> ## Features There are 13 plugin kits built in the current open source version of UME.

UI kits

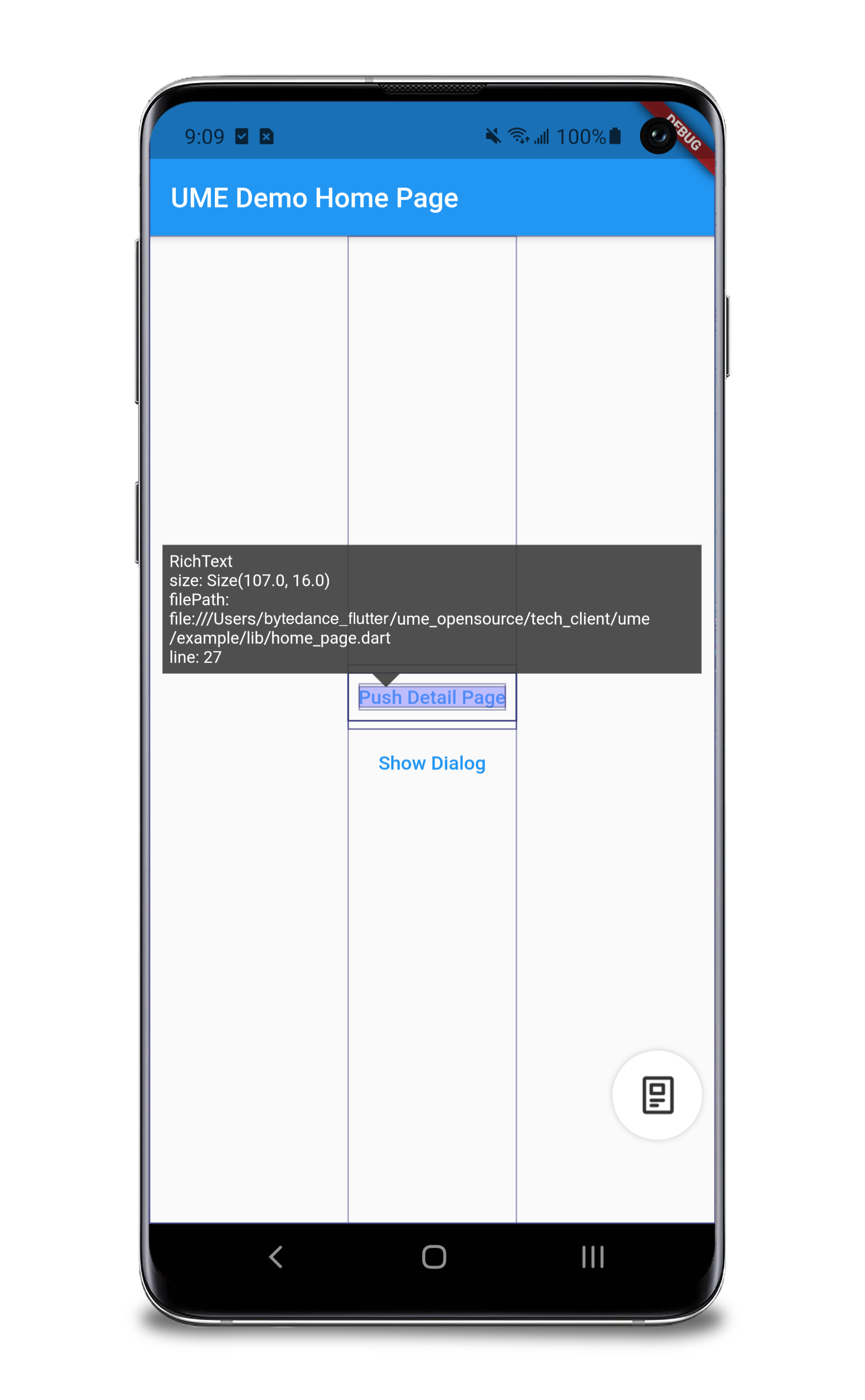

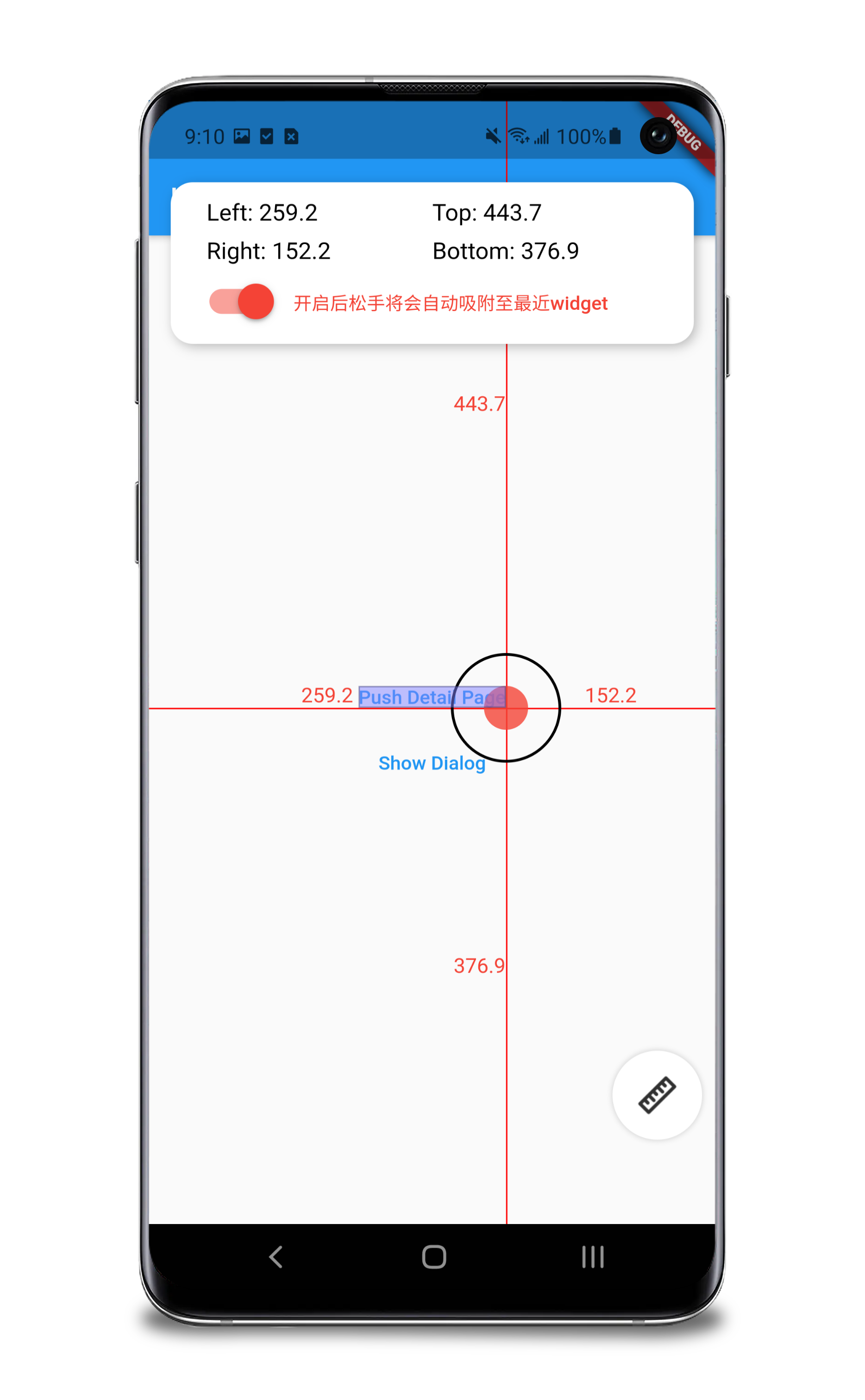

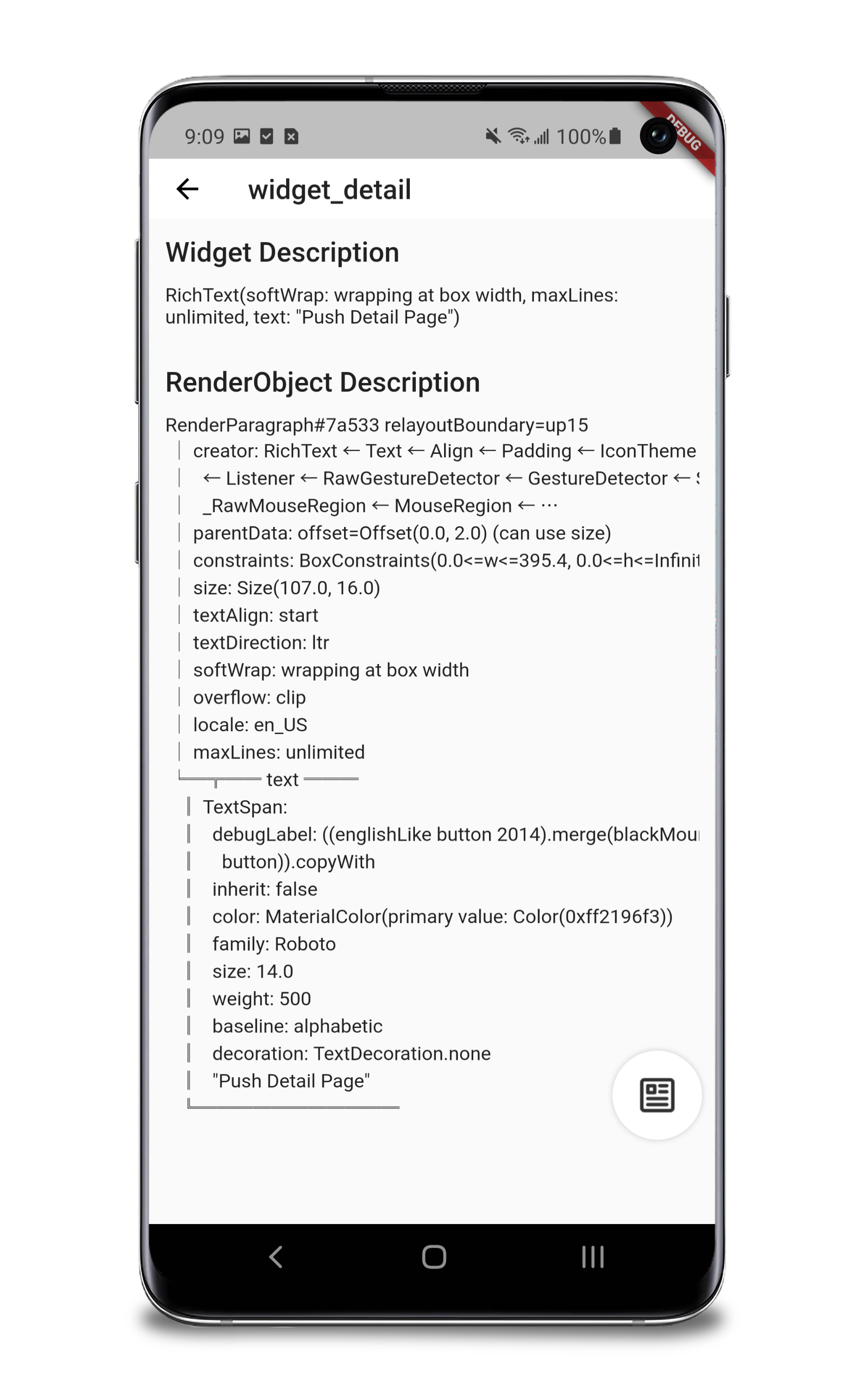

</br>Widget Info	</br>Widget Detail	</br>Align Ruler

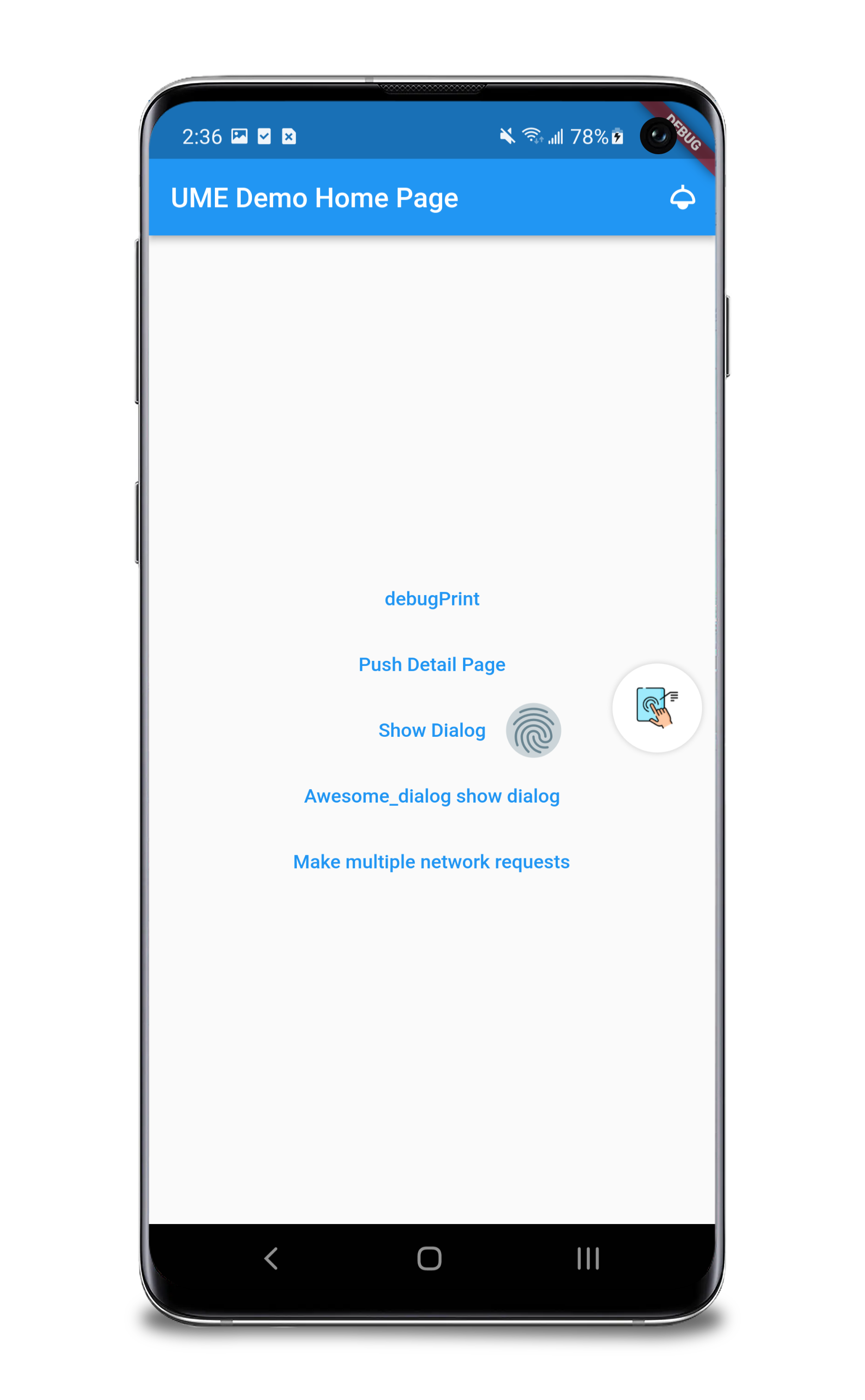

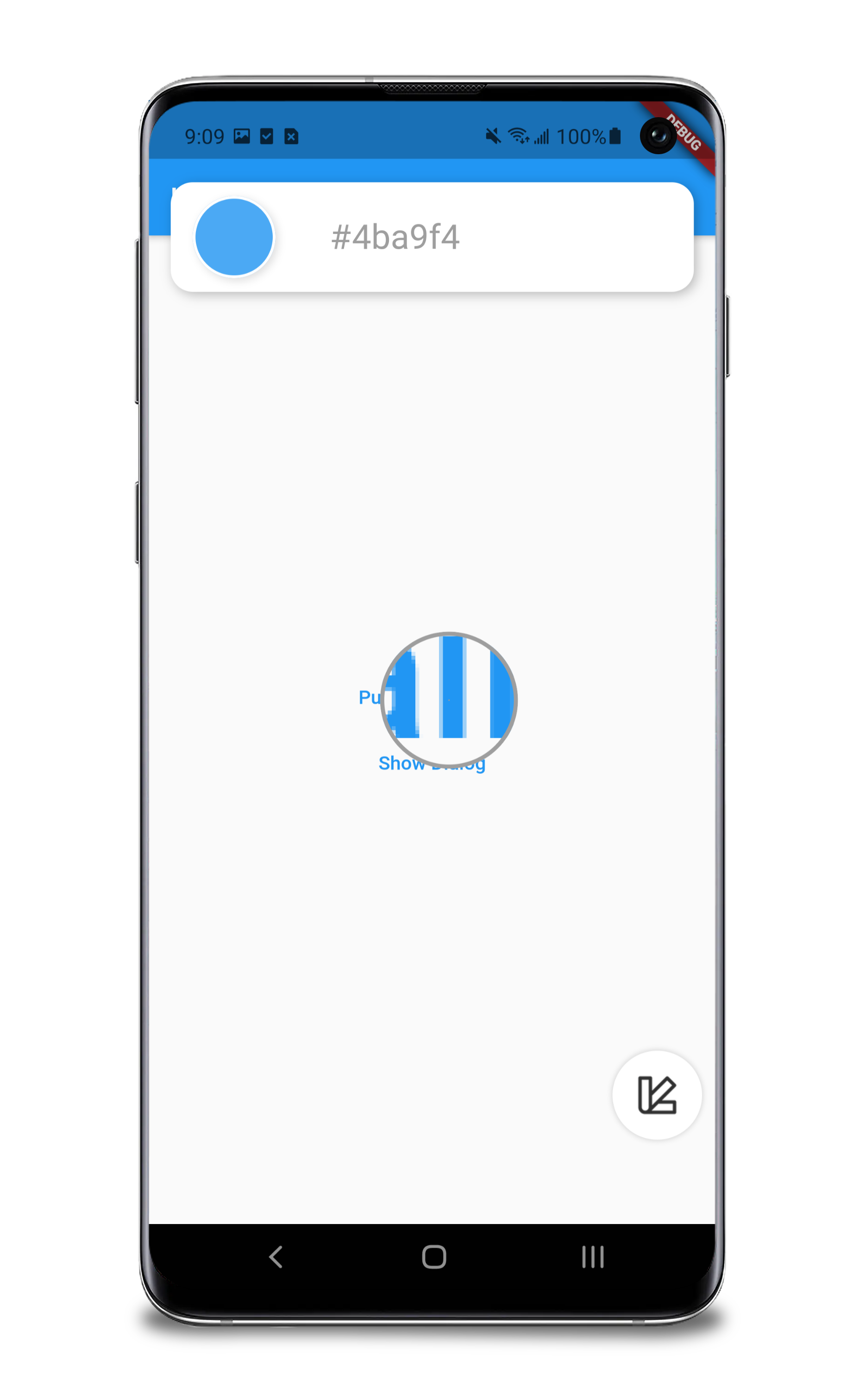

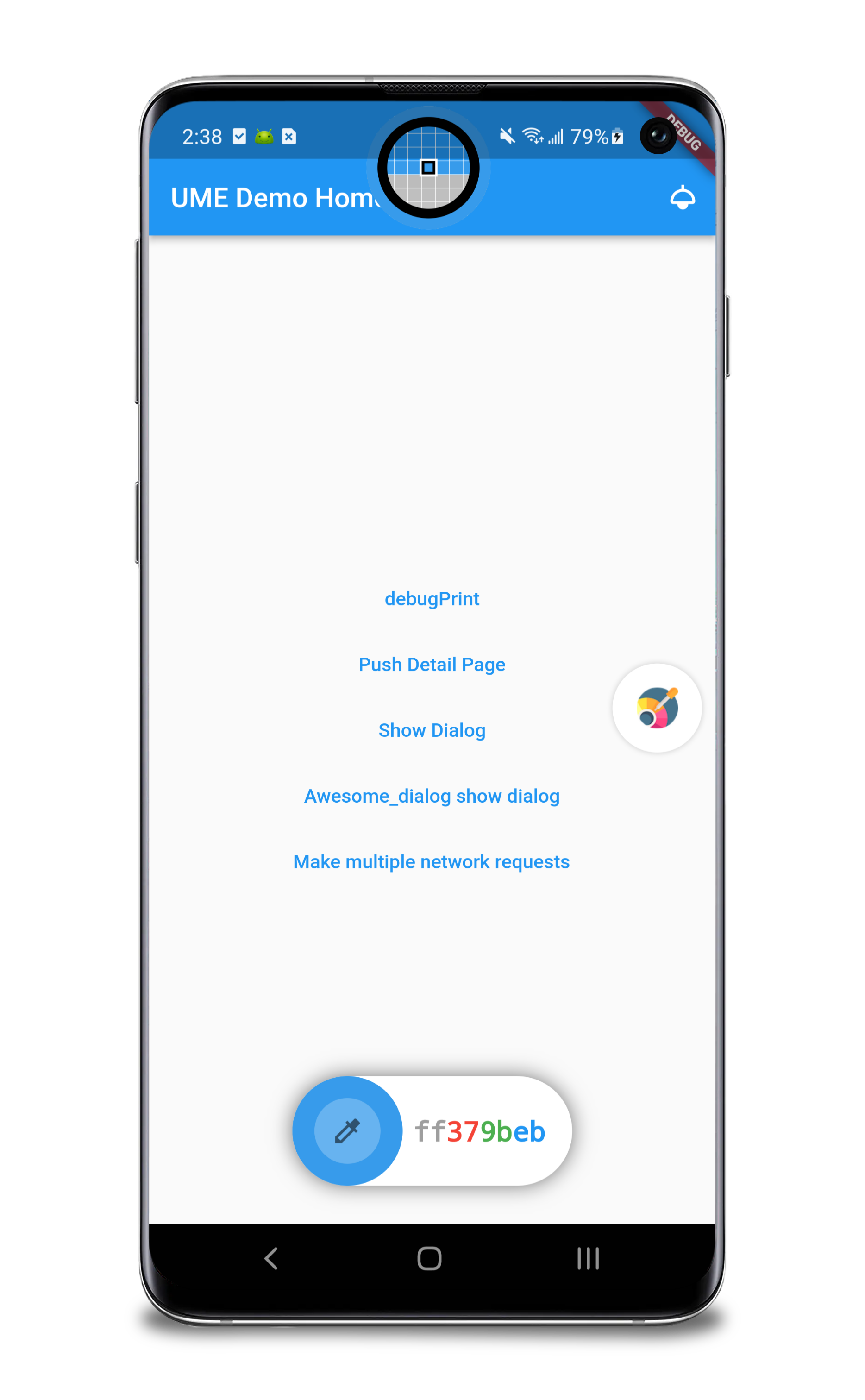

</br>Color Picker	</br>Color Sucker	</br>Touch Indicator
Performance Kits

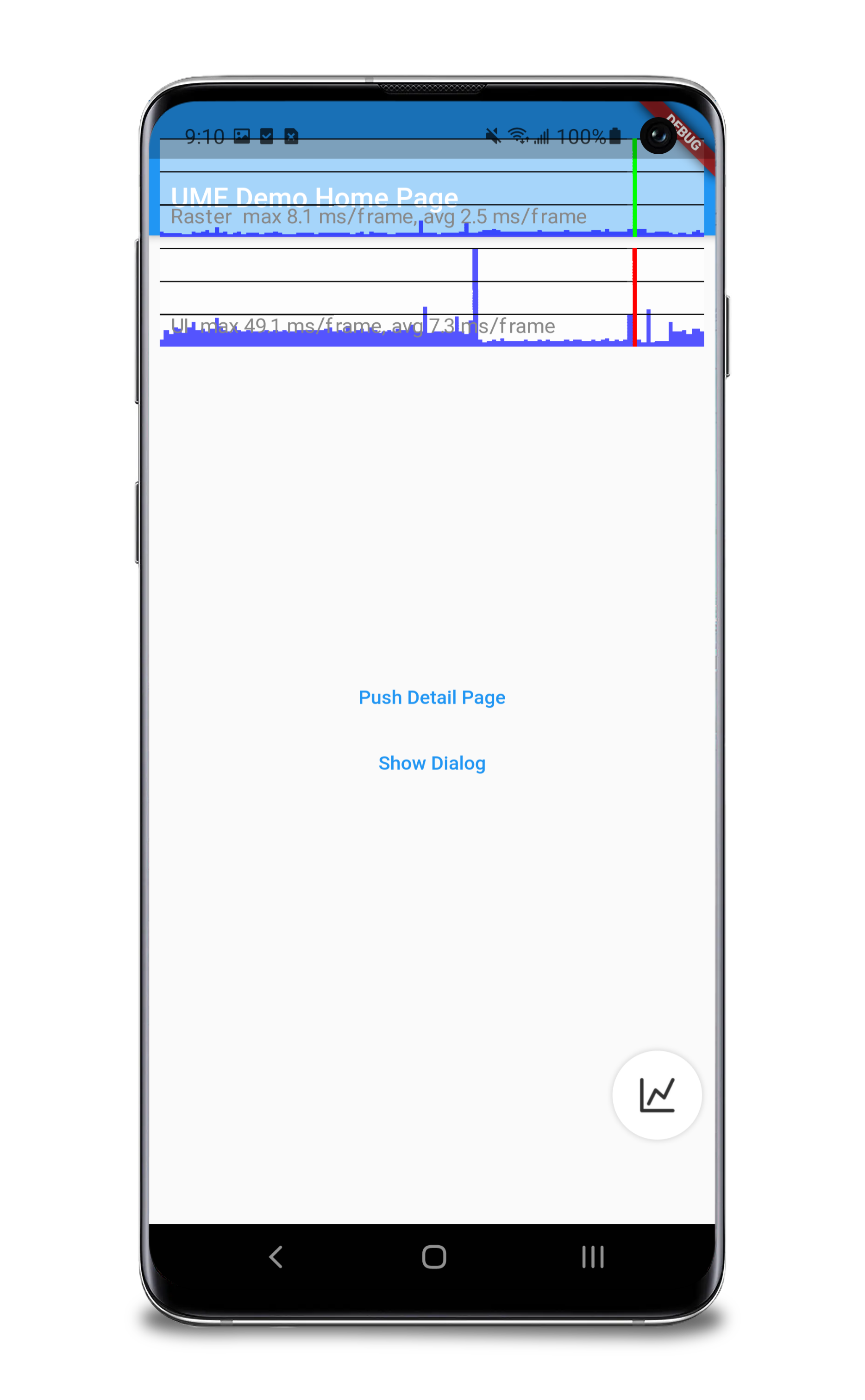

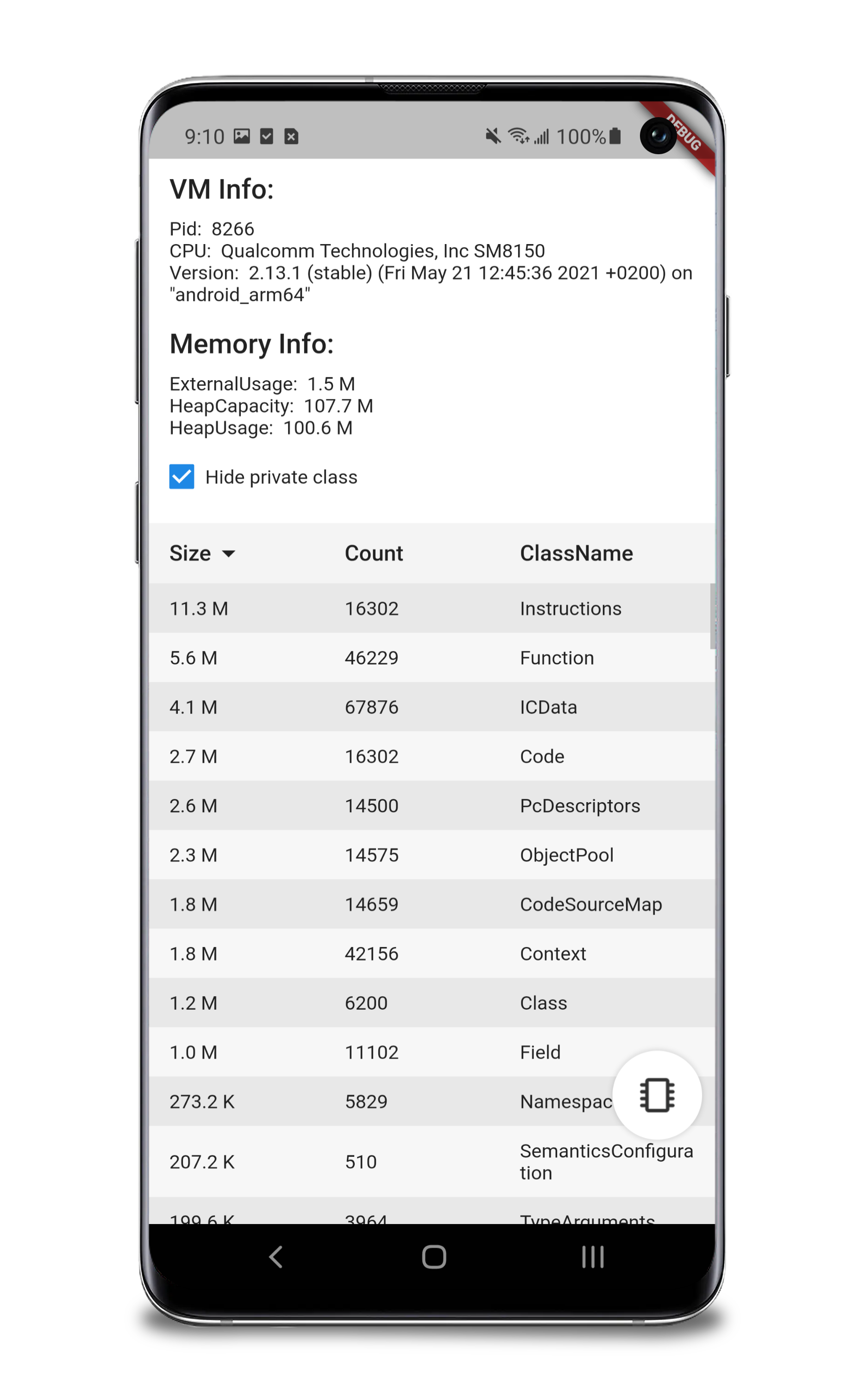

</br>Memory Info	</br>Perf Overlay
Device Info Kits

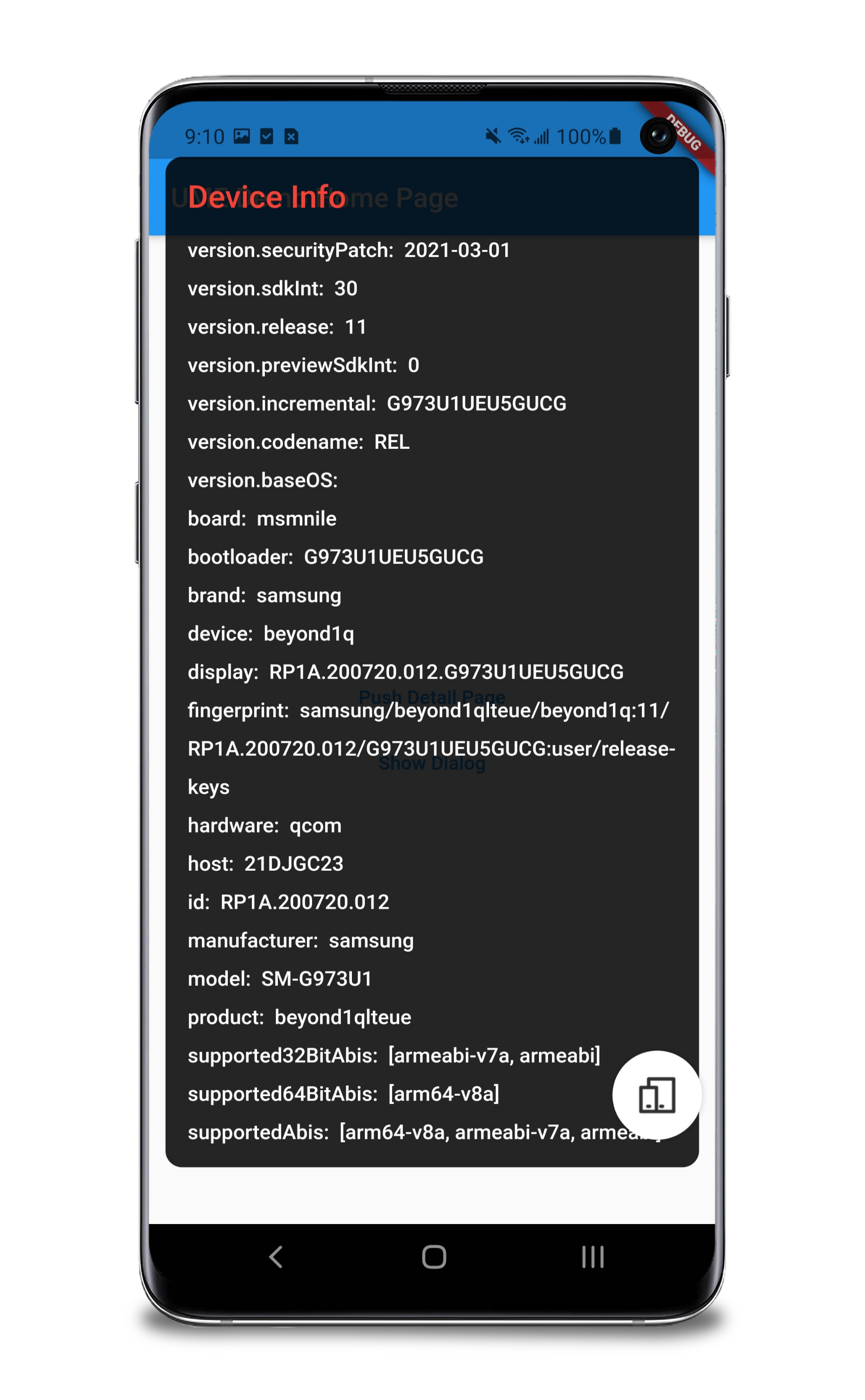

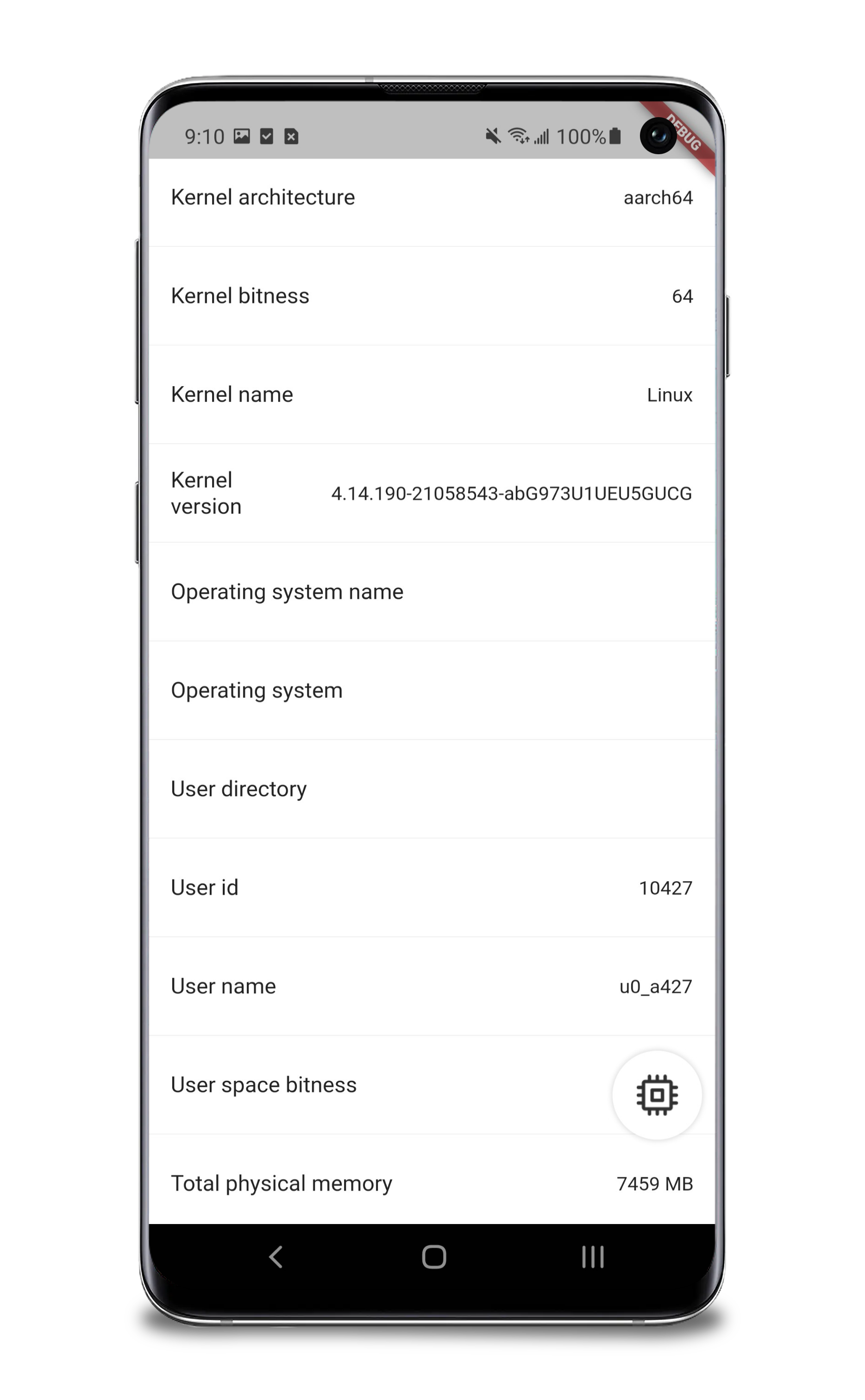

</br>CPU Info	</br>Device Info

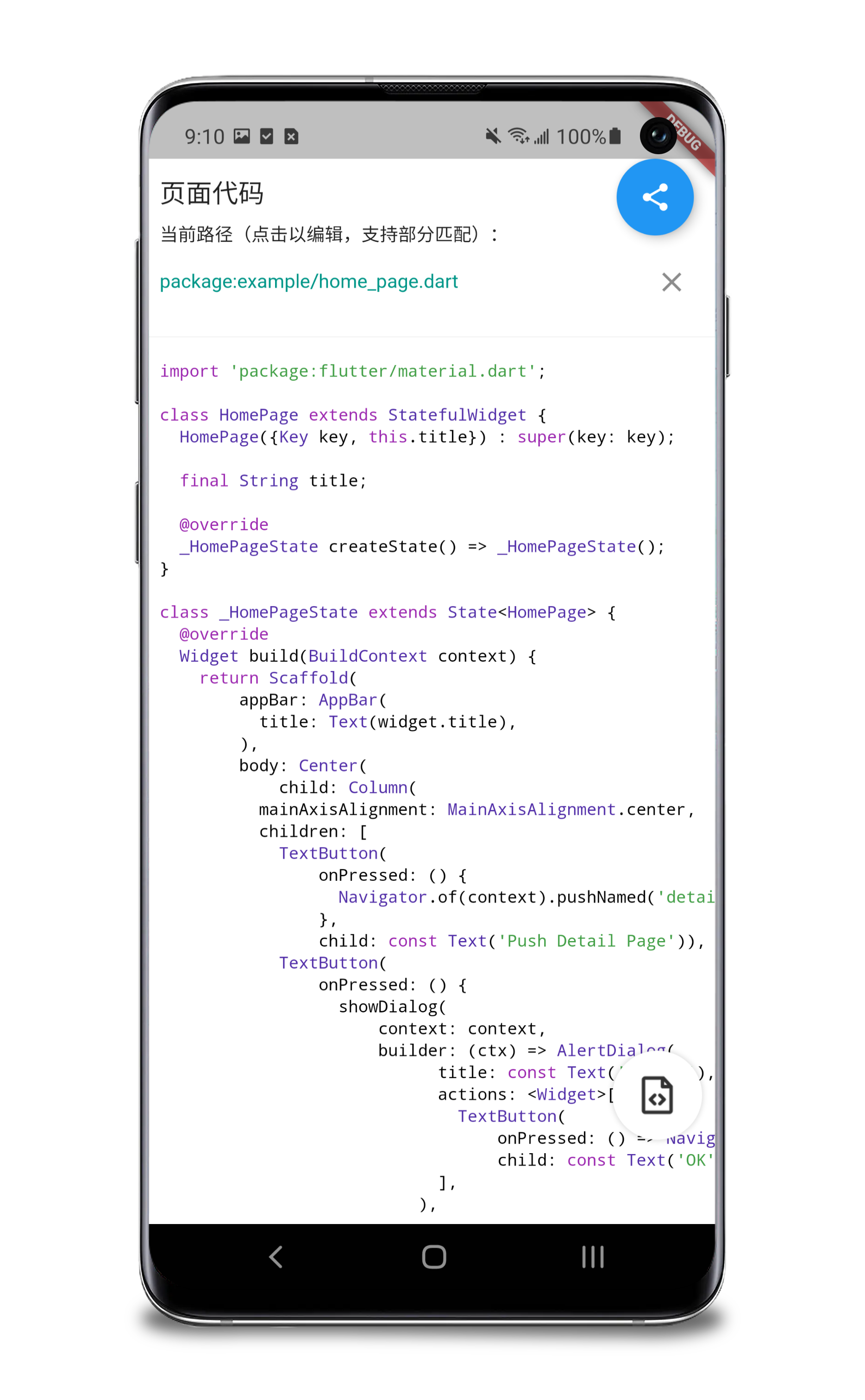

Show Code
</br>Show Code

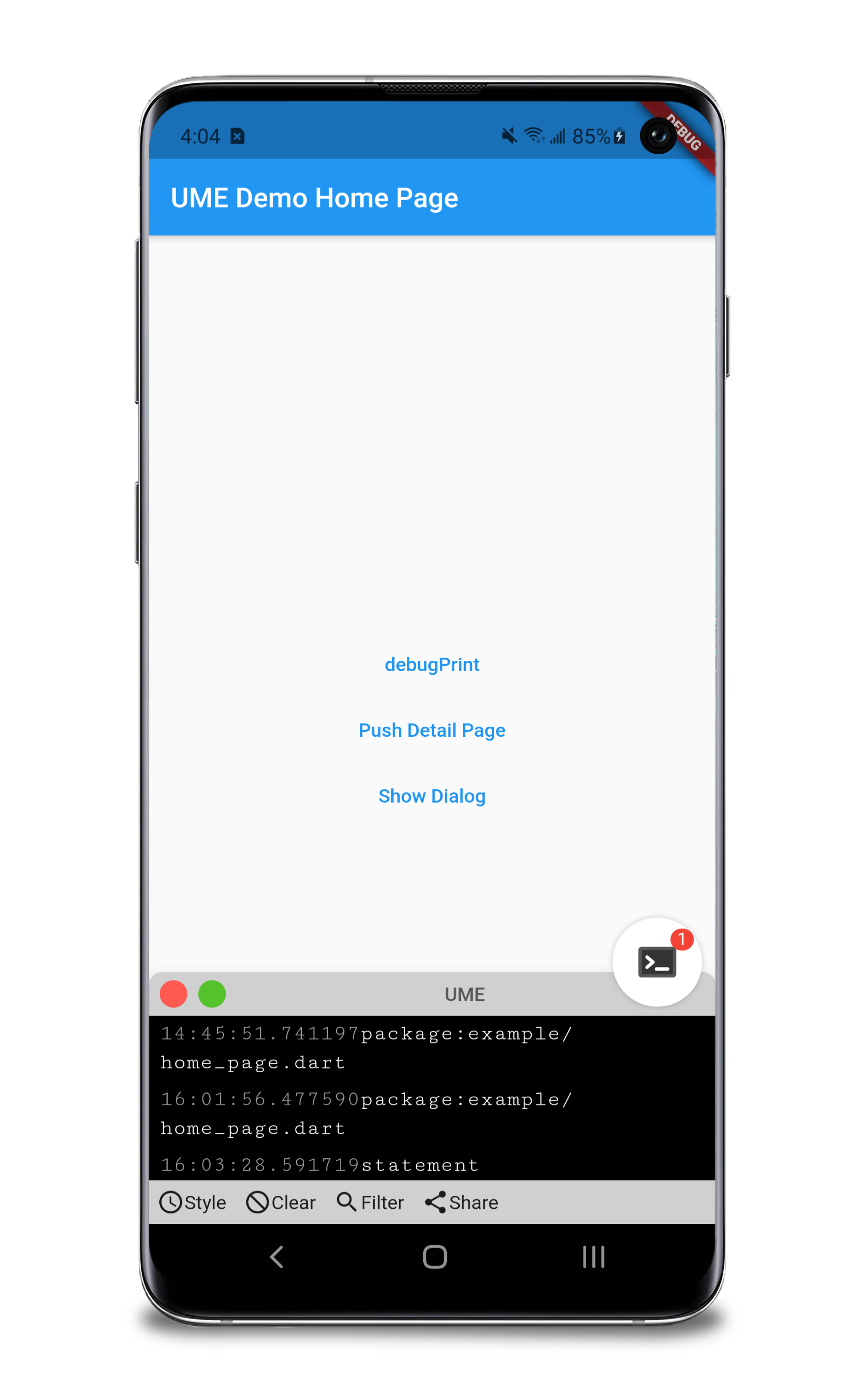

Console
</br>Console

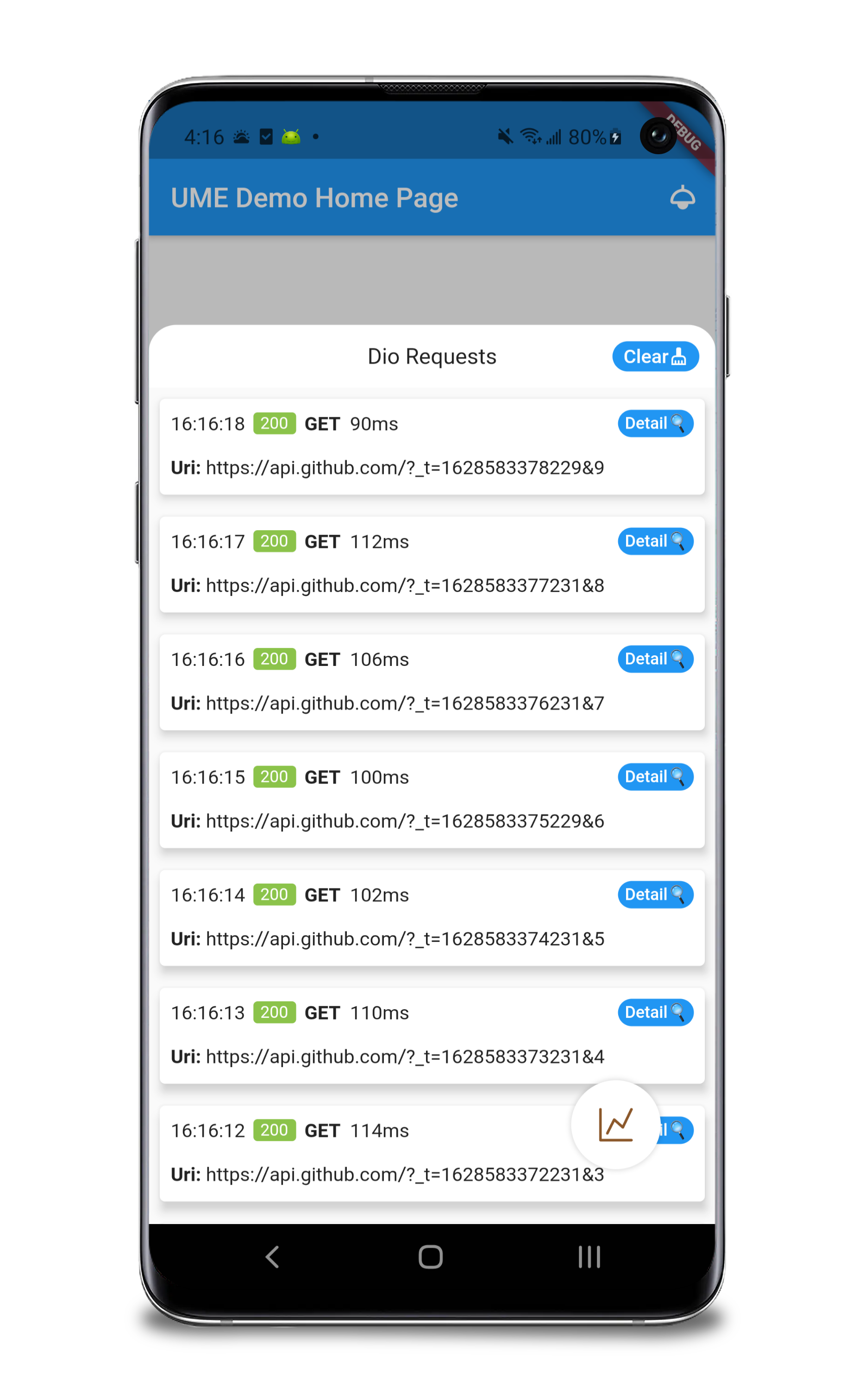

Dio Inspector
</br>Dio Inspector

## How to use UME in Release/Profile mode **Once you use ume in Release/Profile mode, you agree that you will** **bear the relevant risks by yourself.** **The maintainer of ume does not assume any responsibility for the accident** **caused by this.** **We recommend not to use it in Release/Profile mode for the following reasons:** 1. VM Service is not available in these environments, so some functions are not available 2. In this environment, developers need to isolate the app distribution channels by themselves to avoid submitting relevant debugging code to the production environment In order to use in Release/Profile mode, the details that need to be adjusted in the normal access process: 1. In `pubspec.yaml`, `ume` and plugins should be write below `dependencies` rather than `dev_dependencies`. 2. Don't put the code which call `PluginManager.instance.register()` and `UMEWidget(child: App())` into conditionals which represent debug mode. (Such as `kDebugMode`) 3. Ensure the above details, run `flutter clean` and `flutter pub get`, then build your app. ## About version ### Compatibility | UME version | 1.12.13 | 1.22.3 | 2.0.1 | 2.2.3 | 2.5.3 | 2.8.0 | 3.0.5 | 3.3.1 | | ----------- | ------- | ------ | ----- | ----- | ----- | ----- | ----- | ----- | | 0.1.x | ✅ | ✅ | ✅ | ✅ | ⚠️ | ⚠️ | ❌ | ❌ | | 0.2.x | ❌ | ❌ | ✅ | ✅ | ✅ | ⚠️ | ❌ | ❌ | | 0.3.x | ❌ | ❌ | ✅ | ✅ | ✅ | ✅ | ❌ | ❌ | | 1.0.x | ❌ | ❌ | ⚠️ | ⚠️ | ⚠️ | ⚠️ | ✅ | ✅ | | 1.1.x | ❌ | ❌ | ⚠️ | ⚠️ | ⚠️ | ⚠️ | ✅ | ✅ | ⚠️ means the version has not been fully tested for compatibility. ### Special case - Please use `ume_kit_ui: ^1.1.0` and above version when you are using Flutter 3.7 and above. ### Coverage | Package | master | develop | develop_nullsafety | | ----------------- | ------------------------------------------------------------------------------------------------------------- | -------------------------------------------------------------------------------------------------------------- | ------------------------------------------------------------------------------------------------------------------------- | | ume |  |  |  | | ume_kit_device |  |  |  | | ume_kit_perf |  |  |  | | ume_kit_show_code |  |  |  | | ume_kit_ui |  |  |  | | ume_kit_console |  |  |  | | ume_kit_dio |  | N/A |  | ### Version upgrade rules Please refer to [Semantic versions](https://dart.dev/tools/pub/versioning#semantic-versions) for details. ### Change log [Changelog](./CHANGELOG.md) ## Contributing Contributing rules: [Contributing](./CONTRIBUTING_en.md) ### Contributors Thanks to the following contributors (names not listed in order)： | | | | ----------------------------------------------------------------------- | ------------------------------------------- | |  | [ShirelyC](https://github.com/smileShirely) | |  | [lpylpyleo](https://github.com/lpylpyleo) | |  | [Alex Li](https://github.com/AlexV525) | |  | [Swain](https://github.com/talisk) | |  | [mengdouer](https://github.com/mengdouer) | |  | [LAIIIHZ](https://github.com/laiiihz) | |  | [XinLei](https://github.com/Vadaski) | |  | [suli](https://github.com/suli1) | |  | [wei-spring](https://github.com/wei-spring) | ### Plugins from community - [ume_kit_channel_monitor](https://pub.dev/packages/ume_kit_channel_monitor) - Channel communication monitor - Cource code: https://github.com/bytedance/ume/tree/master/kits/ume_kit_channel_monitor - [ume_kit_slow_animation](https://pub.dev/packages/ume_kit_slow_animation) - Animation speed control - Cource code: https://github.com/cfug/ume_kits - [ume_kit_shared_preferences](https://pub.dev/packages/ume_kit_shared_preferences) - shared_preferences tool - Cource code: https://github.com/cfug/ume_kits - [ume_kit_designer_check](https://pub.dev/packages/) - Comparing tool for Design UI and real UI - Cource code: https://github.com/cfug/ume_kits - [ume_kit_clean_local_data](https://pub.dev/packages/ume_kit_clean_local_data) - Clean local data - Cource code: https://github.com/cfug/ume_kits 。 - [ume_kit_database](https://pub.dev/packages/ume_kit_database) - DB tool - Cource code: https://github.com/cfug/ume_kits 。 - [ume_kit_traffic](https://pub.dev/packages/ume_kit_traffic) - Network traffic / log / page monitor tools - Source code: https://github.com/insightop/ume/tree/master/packages/ume_kit_traffic 。 - [json2dart_viewerffi](https://pub.dev/packages/json2dart_viewerffi) - DB tool - Cource code: https://github.com/fastcode555/Json2Dart_Null_Safety 。 - [json2dart_viewer](https://pub.dev/packages/json2dart_viewer) - DB tool - Cource code: https://github.com/fastcode555/Json2Dart_Null_Safety 。 - [ume_kit_memory_detector](https://github.com/bladeofgod/ume_kit_memory_detector) - Leaks tool - [ume_kit_channel_observer](https://github.com/bladeofgod/ume_kit_channel_observer) - Channel communication monitor - [flutter-ume-kit-dio-enhance](https://github.com/linversion/flutter-ume-kit-dio-enhance) - Plugin base on ume_kit_dio ### About the third-party open-source project dependencies - The TouchIndicator use the pub [touch_indicator](https://pub.dev/packages/touch_indicator), the ColorPicker use the pub [cyclop](https://pub.dev/packages/cyclop). - We [fork](https://github.com/talisk/cyclop) the package [cyclop](https://pub.dev/packages/cyclop) and modify some code meet our functional needs. We should depend cyclop by pub version after the [PR](https://github.com/rxlabz/cyclop/pull/11) being merged. ## LICENSE This project is licensed under the MIT License - visit the [LICENSE](/ume/LICENSE) for details. ## Contact the author **Maybe...** - Found a bug in the code, or an error in the documentation - Produces an exception when you use the UME - UME is not compatible with the new version Flutter - Have a good idea or suggestion You can [submit an issue](./CONTRIBUTING_en.md#how-to-raise-an-issue) in any of the above situations. **Maybe...** - Communicate with the author - Communicate with more community developers - Cooperate with UME Welcome to [Join the ByteDance Flutter Exchange Group](https://applink.feishu.cn/client/chat/chatter/add_by_link?link_token=67au2f75-3783-41b0-8868-0fc0178f1fd8). Or contact [author](mailto:sunkai.dev@bytedance.com).
